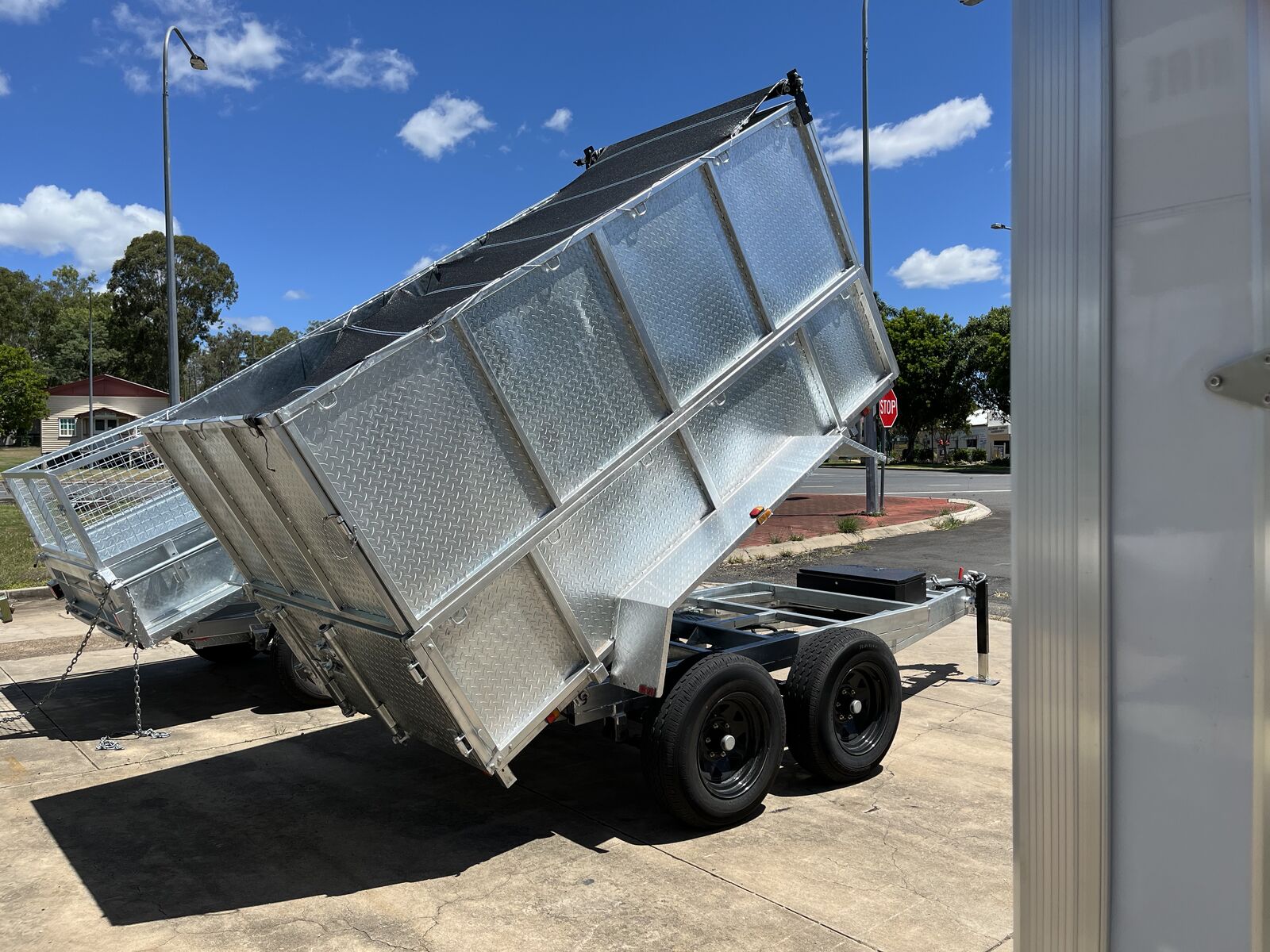

10 x 5 ft Tandem Hydraulic Tipper Skip Bin Trailer with Ramps ATM 4490kg

All Wide Bay Trailers come with a One Year Factory Backed Warranty for absolute peace of mind when you purchase.

Specifications

Technical Specifications:
Internal Trailer Size: L3000mm x W1530mm
Drawbar: Q355B 150x50x4mm + 50x50x4mm
Finish: Fully hot-dipped galvanized for superior rust resistance
Flooring: 4mm checker plate floor
ATM: 4.490kg
Configurations:
Axle: Dual 60mm x 60mm solid square 12” electric brake drum axles (all wheels braked)
Spring: 9-leaf 4.5T rated rocker roller spring
Brake: Electric brakes on all wheels
Wheel: Heavy-duty 225/75R16 wheels, 6-stud Landcruiser rims (includes spare tire mounted on the trailer side)
Jockey Wheel: 8,000LBS top-wind jack on drawbar
Coupler: 4.5T Australia Standard 70mm ball coupler
Lights: LED taillights, side clearance lights, 7-pin connector plug
Hydraulic System:
12V electric/hydraulic tipping system
7 or 10 Ton five-stage hydraulic ram
Anderson cable for automatic charging from tow vehicle
Wireless and wired remote control
Ramps: Two heavy-duty pull-out ramps (1-ton rating each) with under-deck storage
Additional Features:
Custom recessed toolbox for hydraulic system (660CCA 80AH battery)
External mudguards
Barn door design tailgate (opens from bottom or middle)
J-hooks on sides & rear for tarp control
Tarp rolling system & mounting brackets on the front
This trailer is engineered for durability and ease of use, making it the perfect solution for skip bin transport, heavy-duty tipping, and machinery loading.
