16 x 7 ft Tandem Flat Deck Hydraulic 3 Way Tipping Trailer with Loading Ramps ATM 3500kg
Business Use Finance Available From $95pw TAP 36mths
SKU code: 16x7FDHT3W
16 X 7 FT EXTRA HEAVY DUTY FLAT DECK 3 WAY HYDRAULIC TIPPING TRAILER ATM 3500KG, WITH REAR UNDER MOUNT LOADING RAMPS
This is truly an outstanding package which provides great versatility. Front headboard, side gates and tailgates all easily removed.

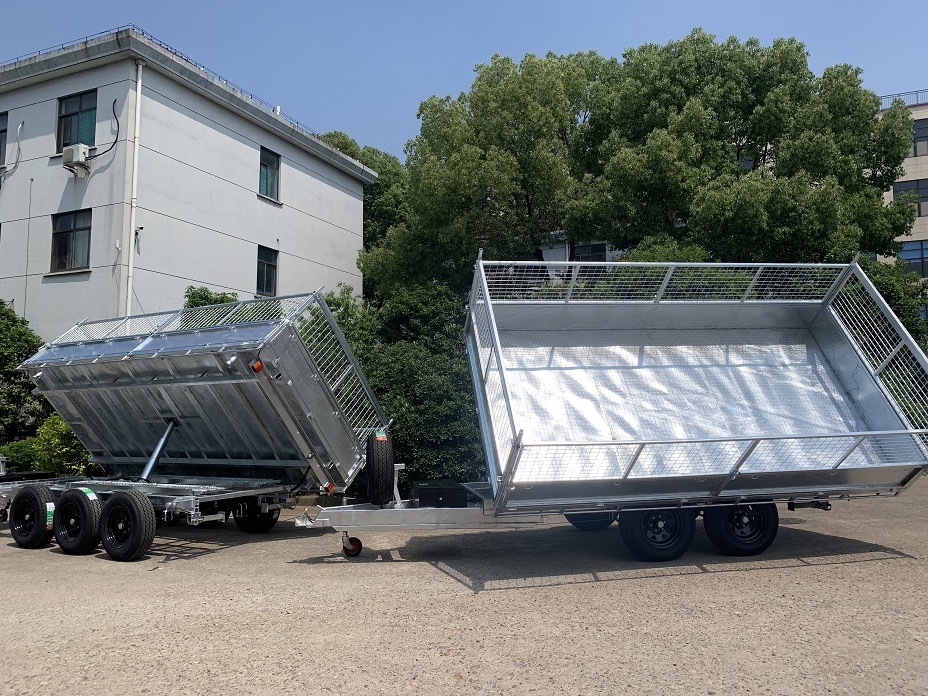

This trailer tips up and also tips to the left and to the right. Unload from any position either side using tilt.
Trailer FLOOR IS 4MM THICK hot dipped galvanised checker plate steel adding incredible strength and durability.
Extra heavy duty hot dipped galvanised ramps included and housed in under trailer deck. The trailer floor has been upgraded to an extra heavy duty 4mm thick checker plate making it one of the toughest and most durable trailers available.
Great for farmers, tradesmen, machinery operators or anyone looking for a high-capacity versatile flat deck hydraulic tipping trailer.
Hydraulic Tipper Includes Loading Ramps, Fully Removable Sides, Cage, Rear Tailgate and Front Headboard.
We have two sizes available for Hydraulic Tipper Trailers… The 16×7 and The 14×7. Both are a flat bed truck body style trailers with removable headboards and 3 sides to load from.
- 16×7 Tandem Flat Top Hydraulic Tipper Trailer 3 Way Tipping
- 600mm Removable Cage (each Panel)
- DECK SIZE: 4.88 x 2.1m (16 x 7ft)
- Dual 100mm Structural chassis super strong and flexible
- Under body extra bracing for trade use long lasting construction
- Rust Free. ATM 3500KG
- Fully Welded Heavy Duty Body and Chassis. Rust Free. Great for Tradesman
- Spare Tyre post option
- 2 x Pull out Ramps
- 3 Sides loading
- 5 x Heavy Duty fold-down or removal sides
- Center pins fully removal for pallet loading
- Full Length Tie Down Rails
- Heavy Duty DEXTER Bearings for trade use
- Each Axle rated at 3000kg each
- Comes with 12″ Electric Brakes
- Quality Breakaway Unit fitted
- LED lights with Marker Lights on the sides. ADRs Complied.
- 50mm 3.5t Quick Release Coupling
- 1900mm Long Draw Bar. With 100mm x 50mm x 8.0mm C-Channel
- 3500KG Tow hitch brake/handbrake
- 60mm Solid Axles 3000kg. Rocker Roller Suspension with Heavy Duty 9 Leaf Springs
- LAND-CRUISER 6 stud 225R7015.
- 50mm Tow Hitch
- Brand new 22570R15c Black Sunraysia Wheels With Light Truck Tyres
- Comes with wind Up Heavy Duty Jockey Stand
All Wide Bay Trailers come with a One Year Factory Backed Warranty for absolute peace of mind when you purchase.
Specifications
| Model: | 16 x 7 ft Tandem Flat Deck Hydraulic Tipper Trailer |
| ATM: | 3500kg |
| Chassis: | 100mm x 50mm x 5mm |
| Trailer Deck Size: | 4800mm x 2400mm (x 300mm with sides on) |
| Drawbar: | 2000mm, 100mm x 50mm x 8mm C-Channel |
| Body: | Drop in Headboard, Drop down/Removable sides & Rear Panel |
| Finish: | Hot Dipped Galvanized |
| Side: | 300mm Removable – 1100mm Headboard |
| Flooring: | 4mm Checker Plate |
| Cage: | Included |
| Jockey Wheel: | Heavy Duty Wind Up Jockey Leg Stand |
| Wheel: | New 225R70 15C 6 STUD Wheels and Tyres |
| Spare Wheel and Holder: | Included |
| Brake: | 12″ Electric Drum Brake x 4 |
| Axle: | Dual Axle, 60mm Round 3000kg Solid Axles, HD Dexter Bearings |
| Coupling: | 50mm Australia Standard |
| Lights: | LED |
| Lights Plug: | Flat 7 Pin Plug |
| Spring: | 9 Leaf Heavy Duty Rocker Roller Spring |
| Safety Chain: | 2 x 12mm |
| Battery: | 105 Amp AGM Gel battery |
| Warranty: | 12 months Limited Warranty |
| SKU | 16x7FDHT3W |
| Brand | Wide Bay Trailers |
