ABOUT 3.5TON CAR AND MACHINERY HYDRAULIC TILTING RAMPLESS TRAILER – ALSO AVAIL 4.4TON ATM

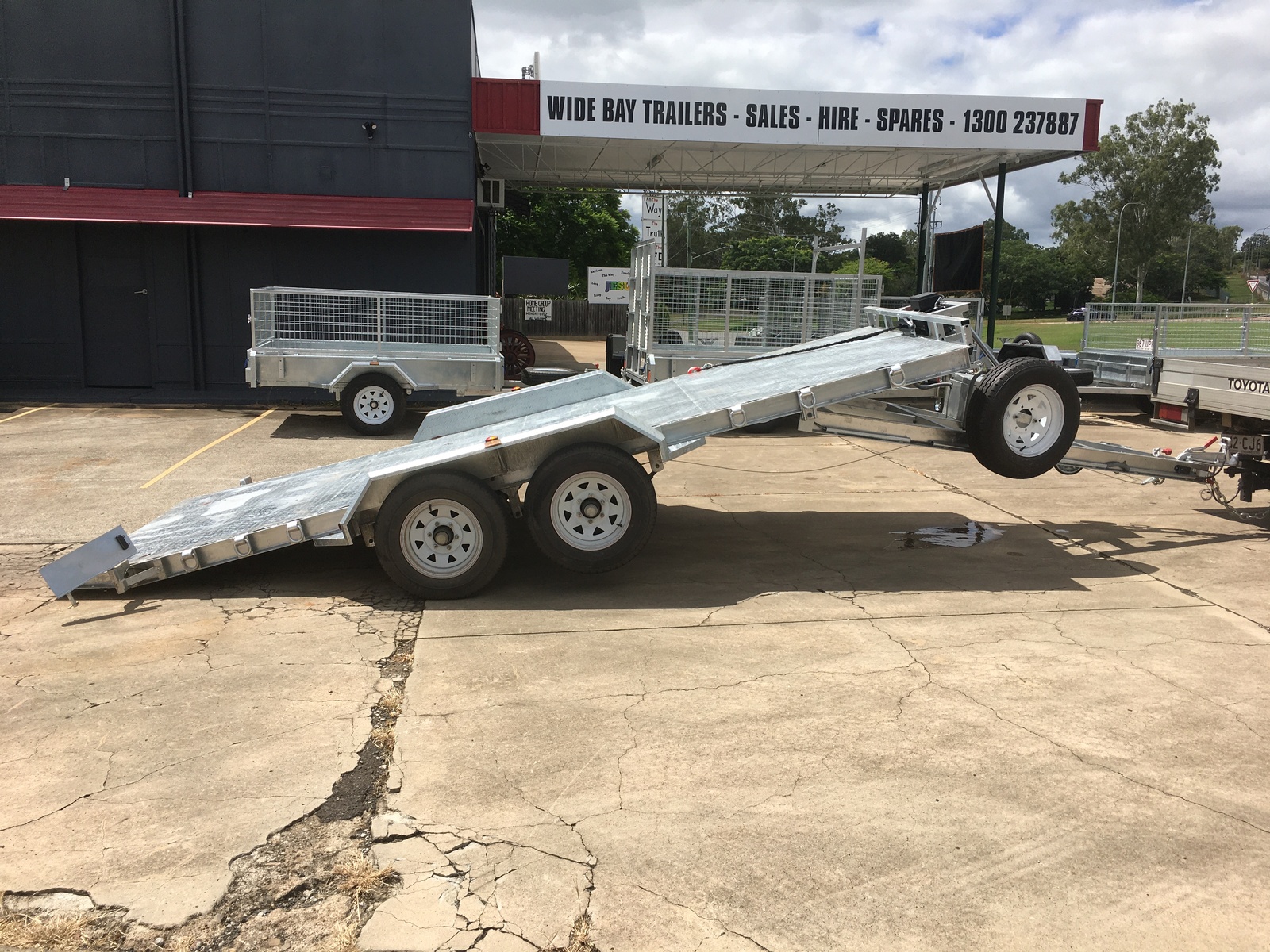

3.5ton Car and Machinery Hydraulic Tilting Rampless Trailer – also available 4.4ton ATM

Includes 12,000lb Elec Winch housed in Trailer Deck, Spare Wheel, Mudflaps, 6mths Registration

Brand new model 3500 kg hydraulically operated fully galvanised car or machinery trailer requiring no ramps for loading. Unique design allows for quick loading and unloading. Wheel arches only extend 175 mm above the trailer deck which allows opening of most any car door without interference.

Payload capacity 2500 kg and with the 2000 mm wide clearance between mudguards, almost any motor vehicle will be able to be transported on this unique trailer system. To view this amazing trailer in action just click on the link here https://youtu.be/wvIzsKXScU4





All Wide Bay Trailers come with a One Year Factory Backed Warranty for absolute peace of mind when you purchase.

SPECIFICATIONS

  • 16.6ft Hot Dipped Galvanized Tandem Hydraulic Powered Car/Machinery Carrier
  • DECK SIZE: 5 x 2m (16.6 x 6.6ft) clear of any obstacles.
  • Includes 12,000lb (6 Ton) electric Winch with wireless remote and wired in remote
  • Wheel guards only 175 mm above trailer deck eliminating door damage to vehicles
  • No Ramps Required, easy, efficient, fast loading
  • 125mm Structural chassis supper strong and flexible
  • Under body extra bracing with long lasting construction
  • ATM 3500KG TARE: 1000kg PAYLOAD: 2500kg
  • ATM 4400KG TARE: 1100kg PAYLOAD: 3300kg (Pricing on Request)
  • Fully Welded Heavy Duty Body then hot dipped galvanised
  • Integrated winch box built into front of trailer deck with 12,000lb winch included
  • Hydraulic Ramp with Push button Controls for Ease of Loading
  • Fold Down Tie down Points (12 in total) 6 along each sides in C-section channel for straps or chains
  • Heavy Duty DEXTER Wheel Bearings (4400kg Rated)
  • 4-wheel x 12inch Electric Brakes
  • Emergency Brake Away System Fitted
  • Steel Toolbox on drawbar houses Hydraulic Pump, Electric Motor and Deep Cycle Battery
  • Multi-volt 12/24v LED lights with Marker Lights both sides. ADRs Complied.
  • 50mm x 3.5t Quick Release Coupling
  • 1900mm Long Draw Bar – 125mm C-section
  • 3500kg Tow hitch brake/handbrake
  • 50mm Solid Axles. Rocker Roller Suspension with Heavy Duty 9 Leaf Springs (4500kg rated)
  • LAND-CRUISER 6 stud 15-inch white Sunraysia wheels.
  • Brand new * Ply 195 R15 Light Truck Tyres
  • Includes swing up 10inch heavy duty Jockey Wheel
  • Includes Spare Wheel
  • Includes Mudflaps
  • Includes 6mths Rego



SKU 3500HCAR
Brand Wide Bay Trailers
